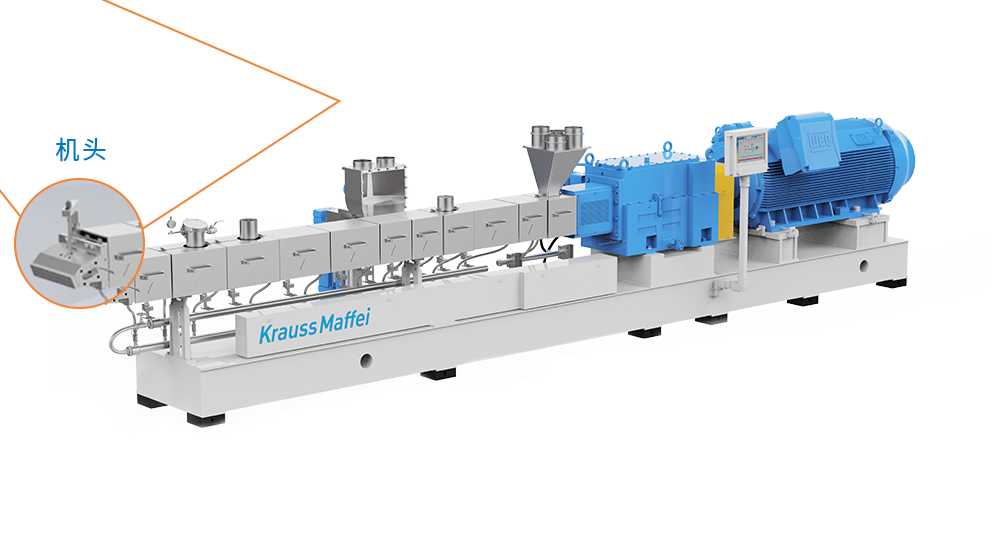

KraussMaffei Golden Power twin-screw extruder series has added a new member – 11.4Nm/cm³ series is fully launched, including models ZE52, ZE62 and ZE77.
KraussMaffei has rich experience and technology in the field of twin-screw extruder manufacturing. According to the ever-changing market demand, KraussMaffei continues to develop, optimize and manufacture extrusion equipment that meets the diverse needs of customers. KraussMaffei continues to enrich its own twin-screw extruder product series, from BluePower’s 16Nm/cm³ to Gold Power’s 13Nm/cm³, which will be launched in 2021, and now to the current 11.4Nm/cm³ series, a wide range of twin-screw extruders The configuration meets the individual needs of the market, and also witnesses the innovation of KraussMaffei, and grows together with the industry!

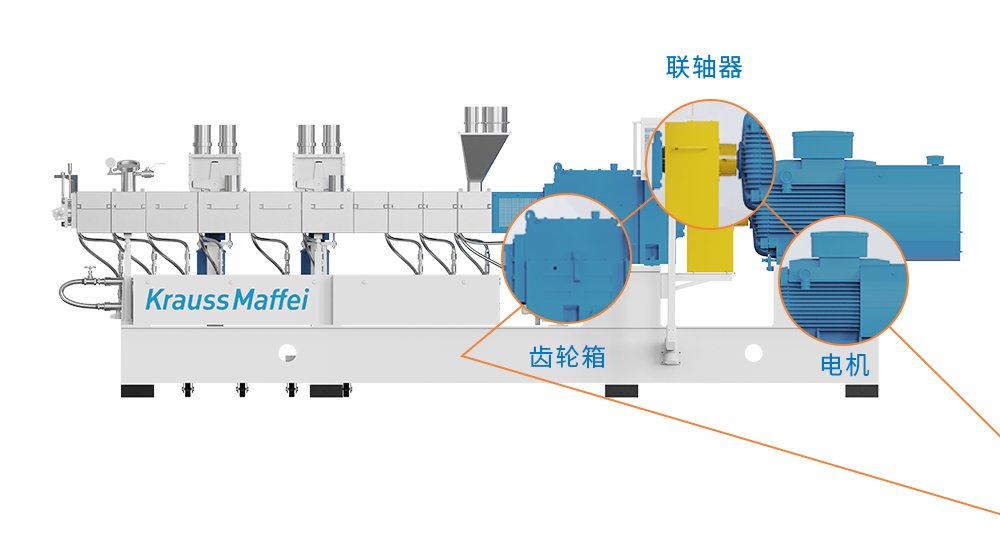

High performance gearbox
The high-performance gearbox jointly developed with domestic excellent gearbox brands, the transmission shaft adopts a double bridge design, with high transmission efficiency and high assembly precision.
Low energy consumption motor
Using WEG motor, compared with other similar products, the motor power is relatively small and the total energy consumption is lower when the specific torque is similar; the motor bearing insulation is designed in the form of carbon brushes, which can avoid shaft current corrosion and prolong the service life of the motor life.

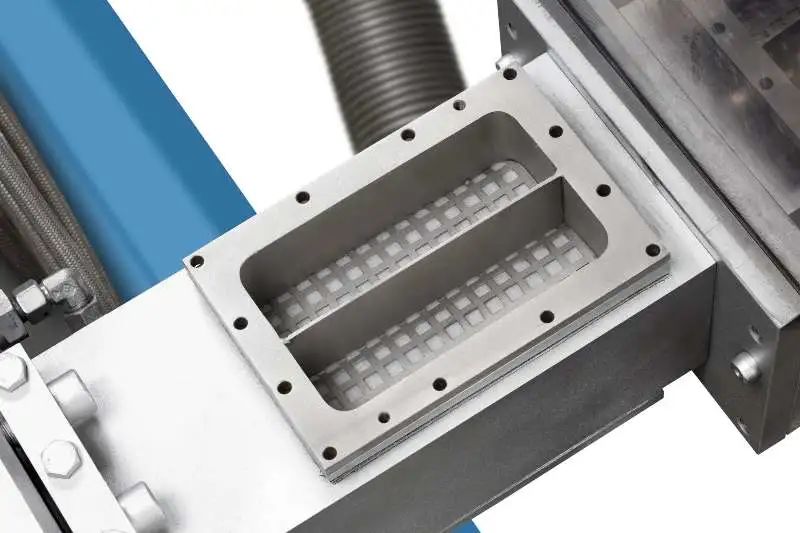

Optimize the design of the machine head
The heating rods on both sides of the machine head and the optimized internal flow channel can improve the fluidity and uniformity of the material in the machine head, and the sliver is uniform and not easy to break. The larger diversion angle and the wider mouth plate can achieve greater output.

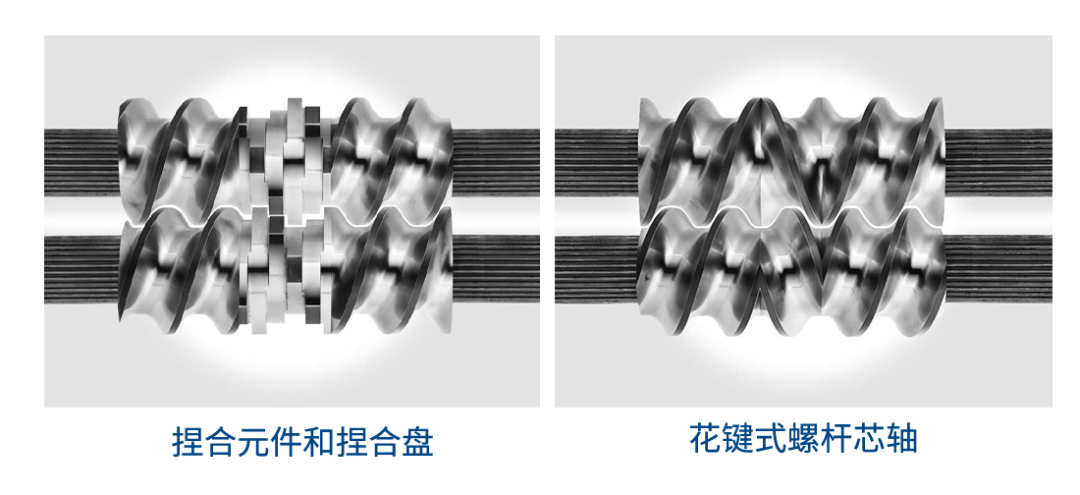

Self-cleaning screw structure
With a self-cleaning thread structure, the tightly meshed twin-screws have a tight self-cleaning shape, which can effectively eliminate the stagnation zone at the entire process end, reduce downtime for cleaning, and improve production efficiency.
Excellent groove depth ratio
The excellent groove depth ratio determines the free volume size of the process end, which is constant, so that the material and temperature can be exchanged intensively and fully. Long-term and sufficient engagement is achieved by tightly engaging threaded elements. Axially open screw channels allow for more efficient exhaust.
Modular design
Adopting a modular design concept, this design advantage enables the extruder to have the greatest flexibility in the mixing and extrusion process. Our process engineers configure barrel and screw elements according to your application and needs. Different processes can be created alternately according to needs, such as conveying, mixing and shearing, homogenization, degreasing and pressurization, in order to obtain better product quality and higher yield.
Accurate temperature control
The barrel adopts heating rods, and each barrel can be heated independently, with high temperature control accuracy and away from heat sources. Optimized around the processing space
The cooling channel design has more efficient reverse cooling performance, which is beneficial to the precise control of the barrel temperature.
KraussMaffei adheres to German ingenuity technology, constantly introduces new products, expands product range to serve a wider market. The newly-launched KraussMaffei Golden Power® twin-screw extruder 11.4Nm/cm³ series, its more cost-effective design can not only meet the production needs, but also bring you a higher return on investment.
